SP-18T-EDID
scroll
Product features
18-Port HDMI Splitter
- Professional 1×18 HDMI splitter supporting full 4K resolution at 60Hz.
- Delivers pristine video quality for large-scale multi-display setups.

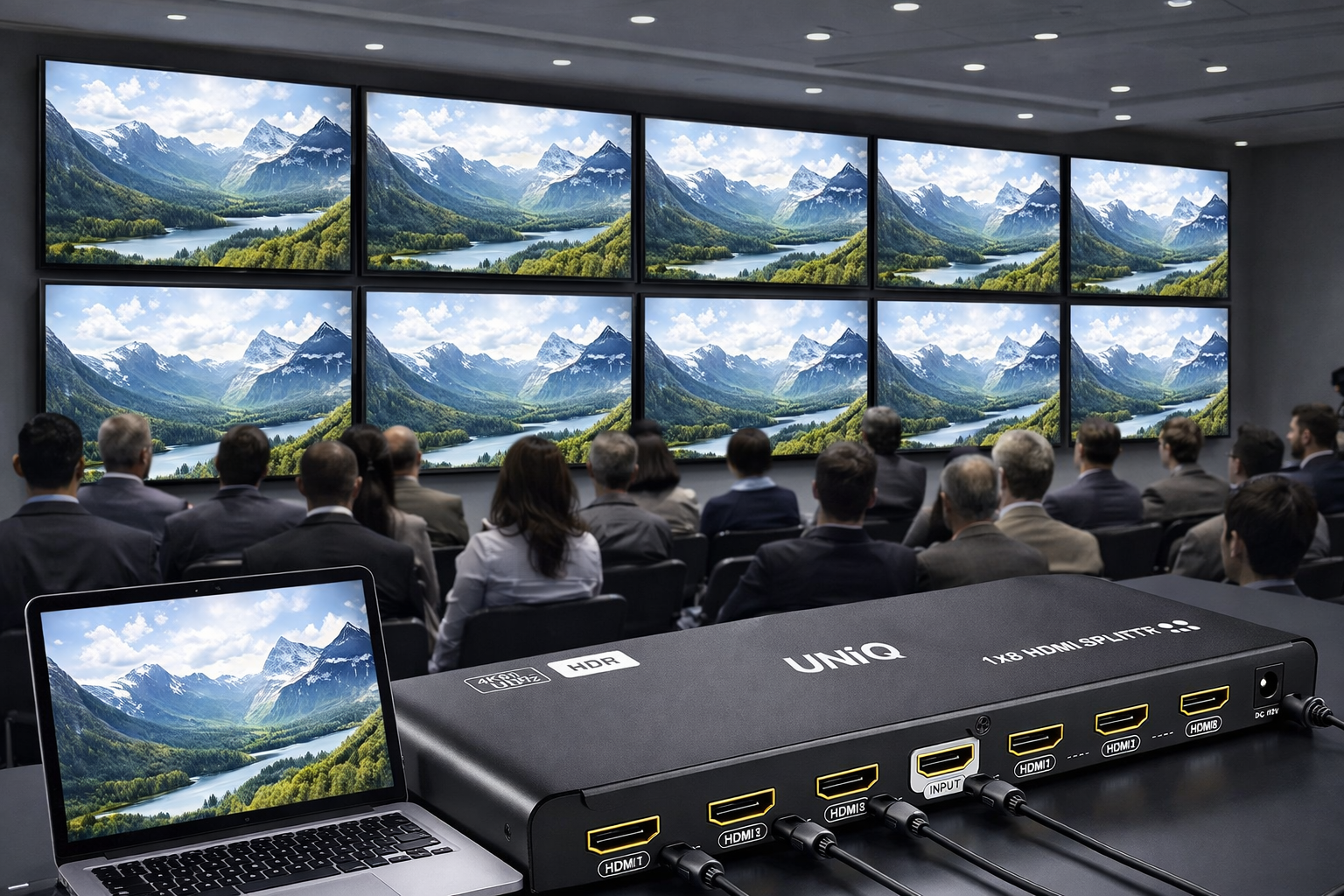

- Perfect for command centers, large conference rooms, and extended reach applications.
Advanced EDID Management
- Sophisticated EDID technology for seamless compatibility with up to 18 displays.
- Automatically resolves resolution conflicts across multiple display types.
- Ensures optimal performance without manual configuration for each output.
Intelligent Scaling
- Automatically adjusts output resolution to match each of the 18 displays' native capabilities.
- Eliminates manual resolution settings and compatibility issues across large installations.
- Provides consistent, high-quality output across all connected displays simultaneously.
Premium HDR & 3D Support
- Full HDR (High Dynamic Range) support for enhanced visual quality across all 18 outputs.
- 3D video compatibility for immersive content delivery to multiple displays.
- Future-proof design supporting latest HDMI standards and advanced features.
Specifications
Model : SP-18T-EDID
| Input Ports | 1 x HDMI |
|---|---|
| Output Ports | 8 x HDMI |
| Power Indicator LED | 1 x LED |
| Signal Indicator LED | 8 x LED |
| HDMI Version | Compatible with HDMI 1.4 / HDMI 2.0 |
| HDCP Version | Compatible with HDCP 1.4 / HDCP 2.2 |
| HDMI Resolution |
480i / 480p / 576i / 576p 720p / 1080i / 1080p 4K×2K @ 24/25/30/60Hz |
| Frequency Range | 25MHz ~ 600MHz |
| Video Format | Supports 3D Video and 4K×2K@30/60Hz Ultra HD Video |
| TMDS Signal | 0.7 ~ 1.5Vp-p (TMDS) |
| DDC Signal | 5Vp-p (TTL) |
| Audio |
Supports Standard Audio and DSD (Direct Stream Digital) Supports HD (HBR) Audio |
| HDR | Supported |
| EDID Management | Supports Smart EDID Management and simultaneous display of different resolution monitors |
| Working Temperature | 0°C ~ 60°C |
| Power Supply | 12V / 1A |
| Power Consumption | <8W |
| Dimensions | 262mm(L) × 81.6mm(W) × 23.5mm(H) |
| Weight | 453g |
| Color | Black |
| Package Contents |
1) HDMI Splitter ×1 2) Power Adapter DC12V/1A ×1 3) User Manual ×1 |
Schematic Diagram
FAQ For SP-18T-EDID
Quick answers for SP-18T-EDID
SP-18T-EDID FAQ
1. No image output?
1) Check the power supply of splitter, make sure the power light is on.
2. 6.2 Display is unstable, splash screen, snowflakes or audio stuck?
1) Check and make sure all connections are good and correct.
3. Display can not output 4Kx2K UHD image when all connections are correct?
1) Check and make sure the input sources are 4Kx2K@60Hz UHD signal.
4. Display can not output HDR effect image when all connections are correct?
1) Check and make sure the input sources are support HDR effect.
