Product features
Full HD 1080p Transmission
- Clear, sharp 1080p video up to 70 meters
- Excellent for presentations and content display
- Reliable quality without signal degradation
Zero Latency Performance
- Instant video and audio response for live applications
- Ideal for remote collaboration and control rooms
- Maintains responsive output across the entire link

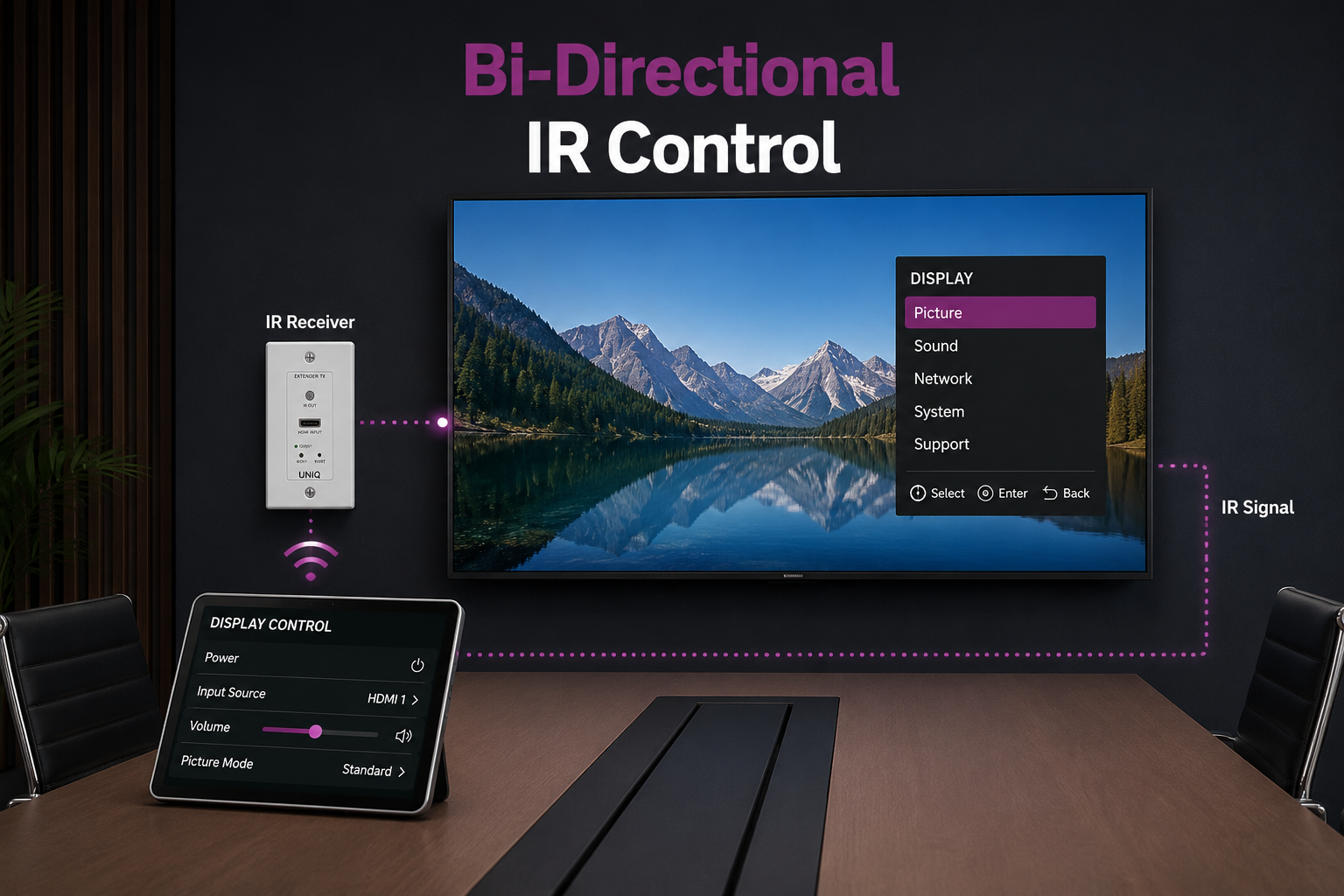

Bi-Directional Control
- Supports control signals in both directions over one link
- Makes remote device management and IR passthrough simple
- Reduces the need for extra control cabling

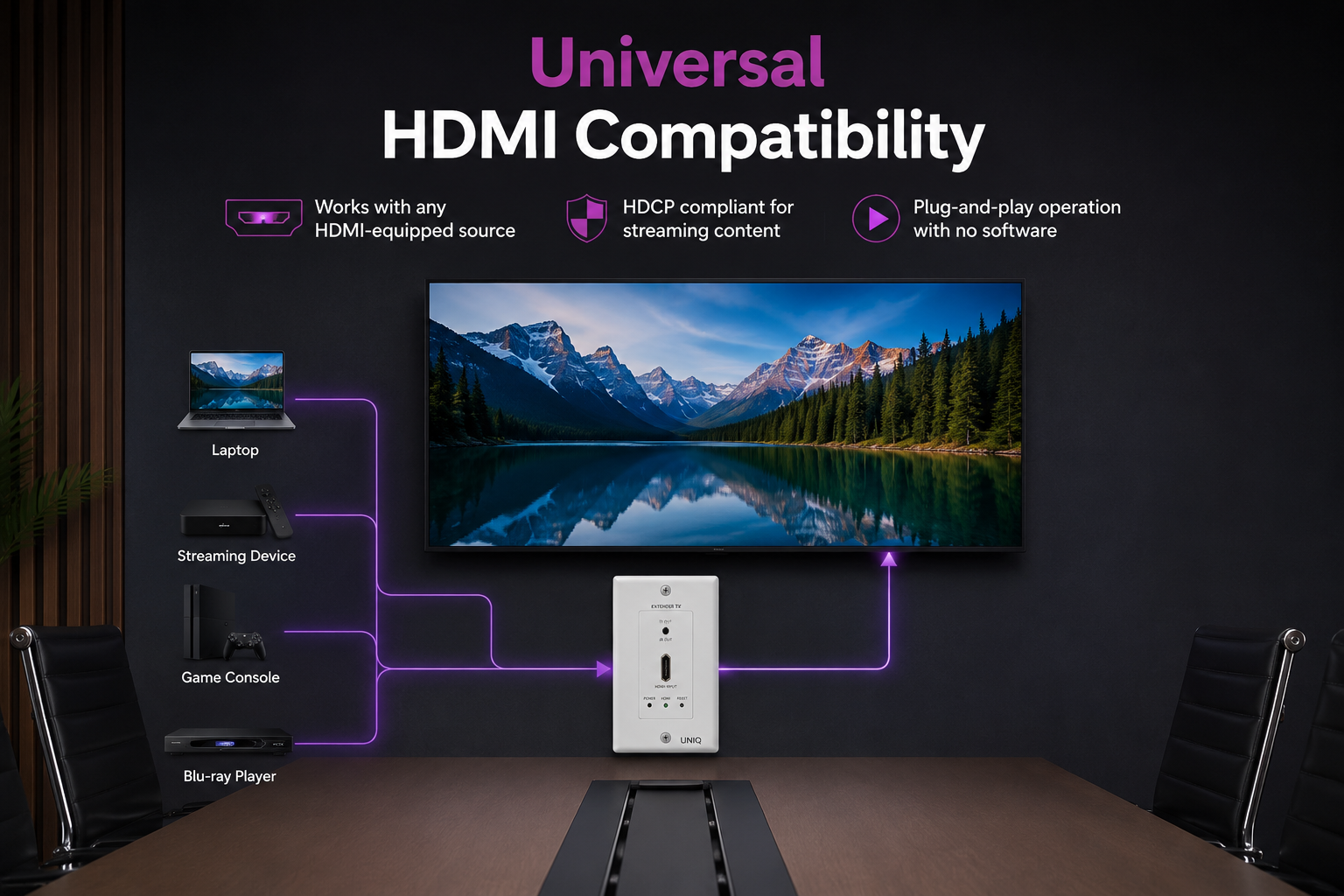

Universal Compatibility
- Works with HDMI sources, displays, and AV equipment
- Supports standard resolutions and connection types
- Easy integration with existing AV systems

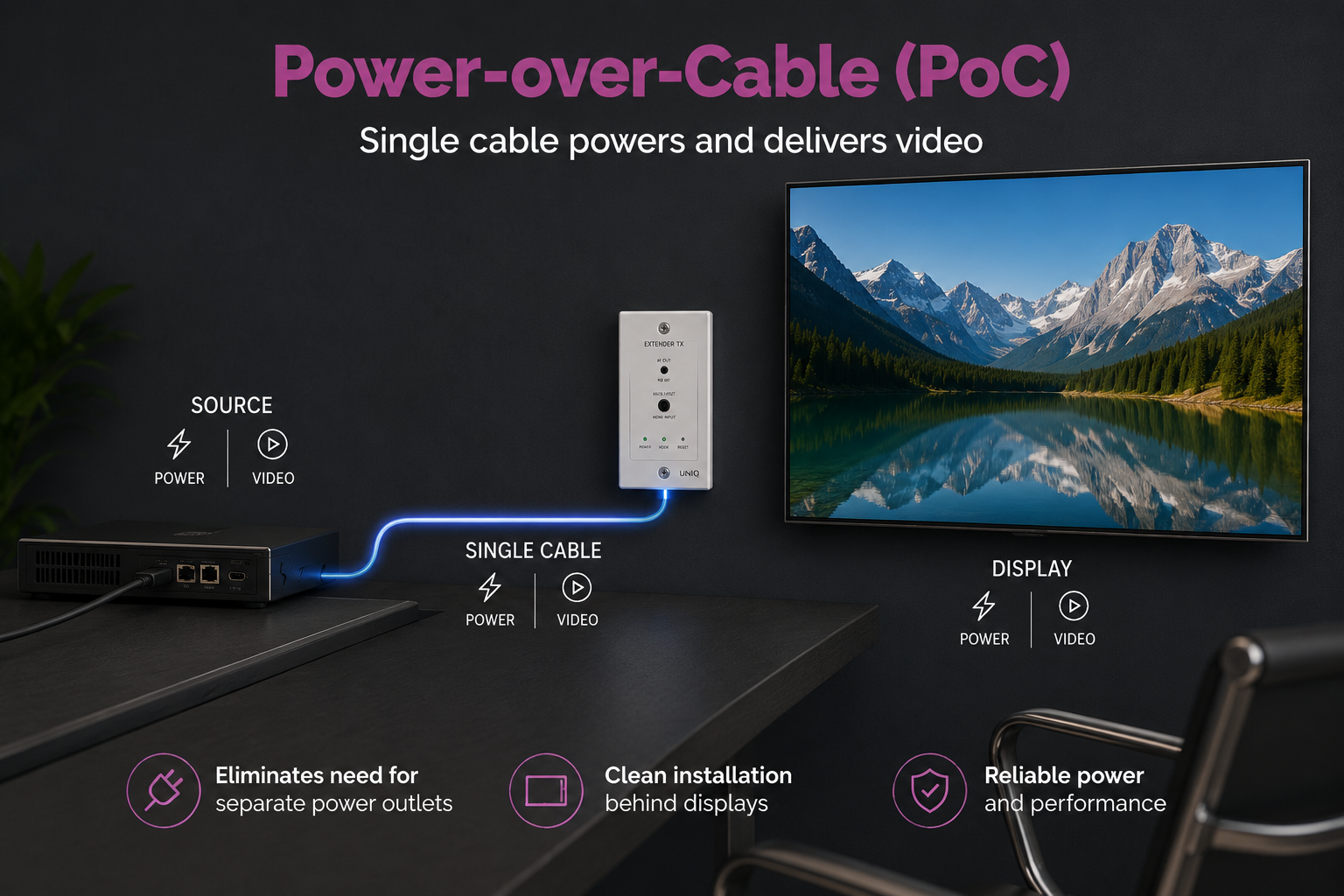

Power over Cable (POC)
- Delivers power through the Ethernet cable
- Reduces wall adapter clutter and simplifies installation
- Ideal for clean, professional deployments

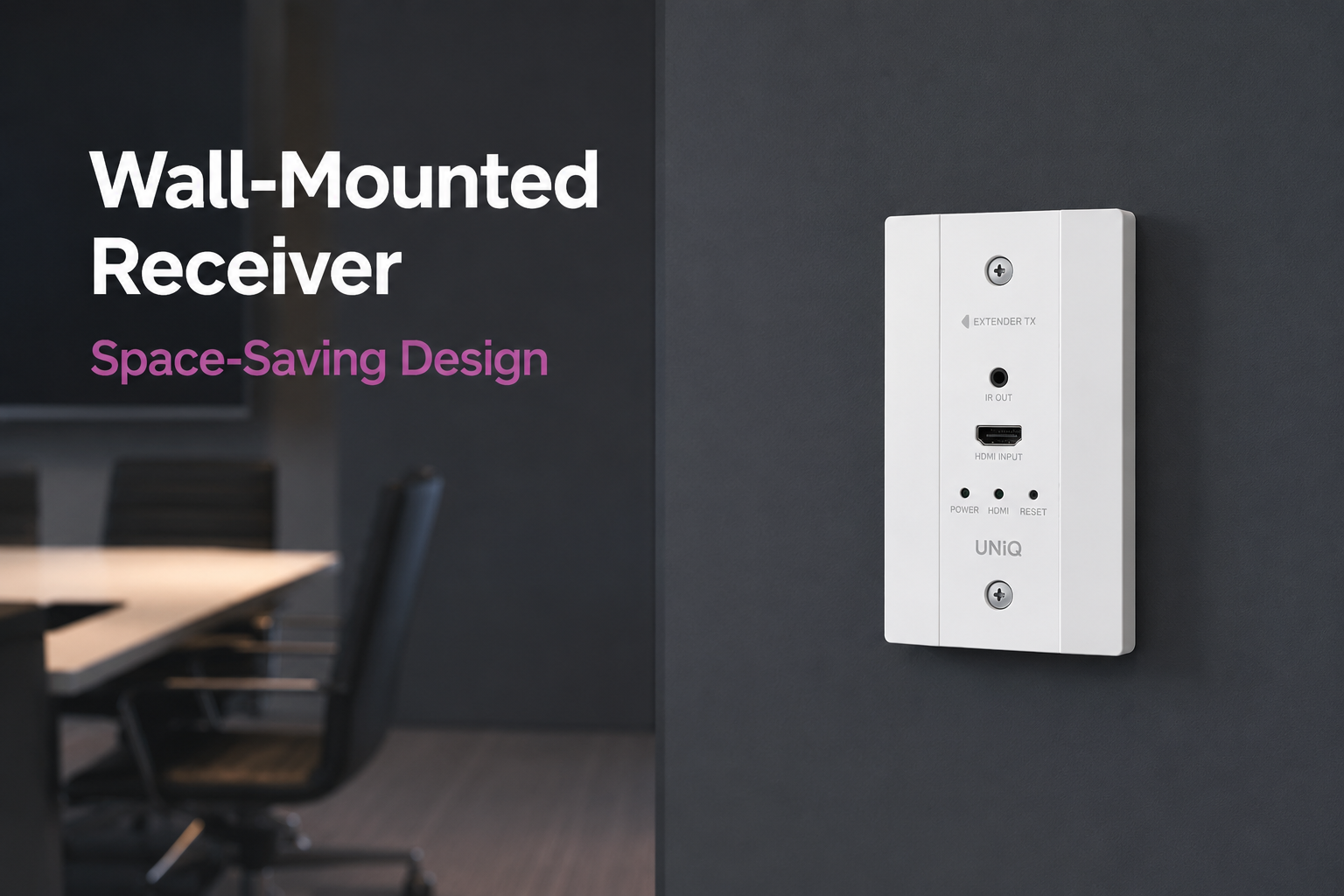

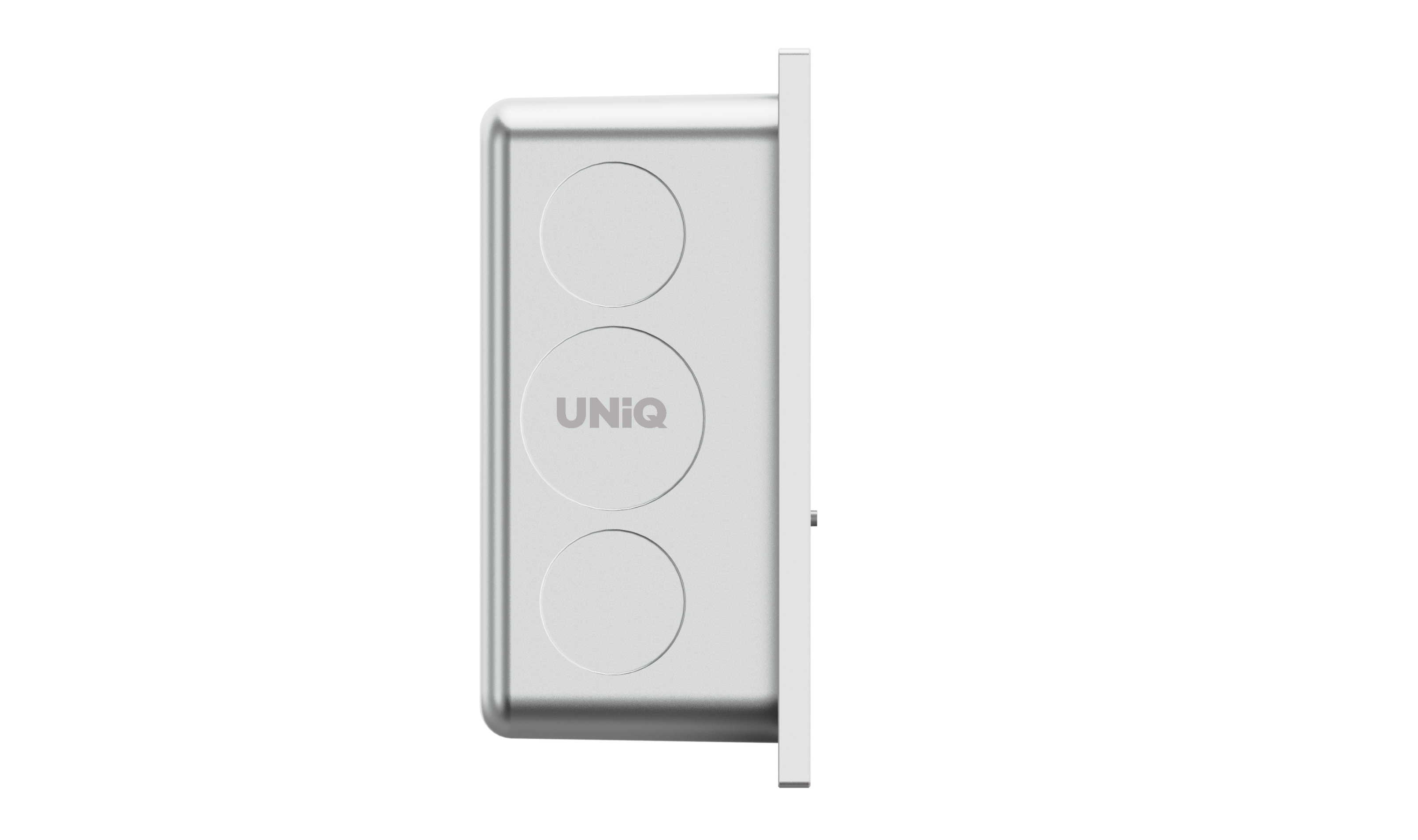

Wall Mounted Design
- Slim, compact form factor made for wall installations
- Fits discreetly behind displays and inside AV enclosures
- Perfect for permanent professional AV setups
Specifications
Model : CE-T70-WALL
| Power Supply |
TX: AC110~240V RX: PoC (Powered by TX) |
|---|---|
| Power Consumption | TX + RX < 7W |
| Video Input Interface |
TX: 1× HDMI Type-A Female RX: 1× RJ45 Female |
| Video Output Interface |
TX: 1× RJ45 Female RX: 1× HDMI Type-A Female |
| HDMI Cable Length | ≤ 5m |
| EDID Pass-through | Supported |
| Compatibility |
HDMI 2.0 (Deep Color, 4K, HDR, YUV4:4:4) HDCP 2.2 / HDCP 1.4 |
| Performance |
18Gbps Transfer Rate 600MHz Bandwidth |
| Resolution Support |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600, 1920×1200 |
| Transmission Distance | CAT6/6A/7 ≤ 70m |
| Audio Input | 1× HDMI Type-A Female |
| Audio Output |
1× HDMI Type-A Female 1× 3.5mm L/R Female |
| Audio Formats |
LPCM, DTS-HD, DTS Audio, Dolby Digital 5.1CH, Dolby Atmos |
| IR Interface |
TX: 1× 3.5mm IR OUT Female RX: 1× 3.5mm IR IN Female |
| Receiving Range | ≤ 5m |
| Infrared Frequency | 20KHz ~ 60KHz |
| Working Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 0~90% RH (No Condensation) |
| Protection |
IEC61000-4-2 Contact Discharge Level 2 (±4KV) Air Discharge Level 3 (±8KV) Lightning Protection Surge Protection |
| Dimensions |
TX: 70.0(L) × 114.0(W) × 51.0(H) mm RX: 70.0(L) × 114.0(W) × 51.0(H) mm |
| Material | Aluminium Alloy + Iron |
| Color | Black |
| Weight |
TX: 270g RX: 250g |
| Certifications | FCC / CE / RoHS |
| Package Contents |
1× Transmitter 1× Receiver 1× IR Blaster Cable 1× IR Receiver Cable 2× US Standard 4×2 Inch Concealed Box 4× TM3#14 Screws 1× User Manual |
SCHEMATICS
FAQ For CE-T70-WALL
Quick answers for CE-T70-WALL
CE-T70-WALL
1. Is it compatible with Zoom, Microsoft Teams and Skype?
Compatible.
2. I want to use it for video conferencing at my company.
Many companies use firewalls when connecting to the
internet, so availability for video conferencing can depend on the network
environment.
3. The image does not move smoothly.
This depends on the performance of your computer and the
speed of your internet connection.
4. I want to test whether the camera is working.
Please refer to "6. How to Check Camera is
Connected."
