ProCAM-Ai20SIP
scroll
Product features

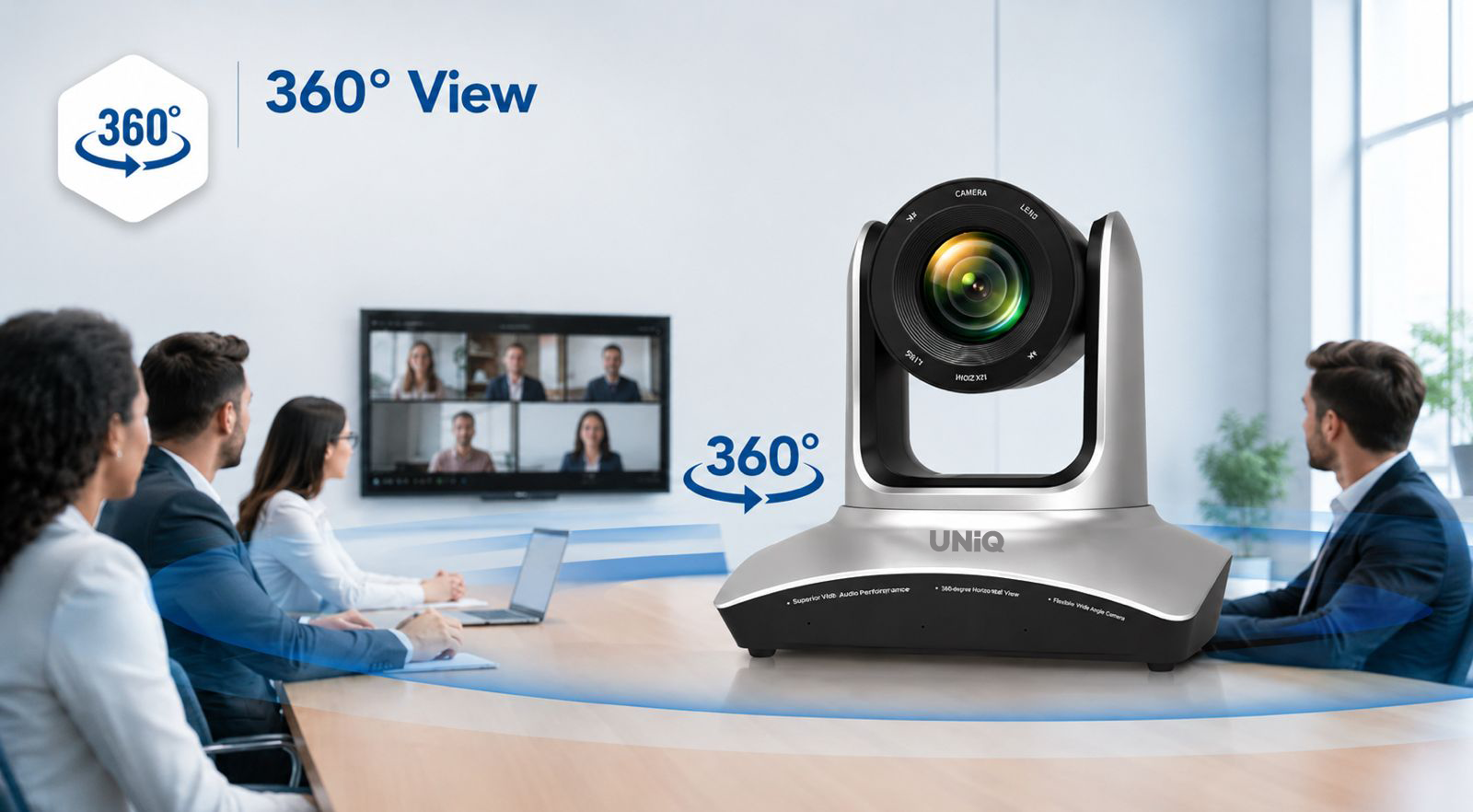

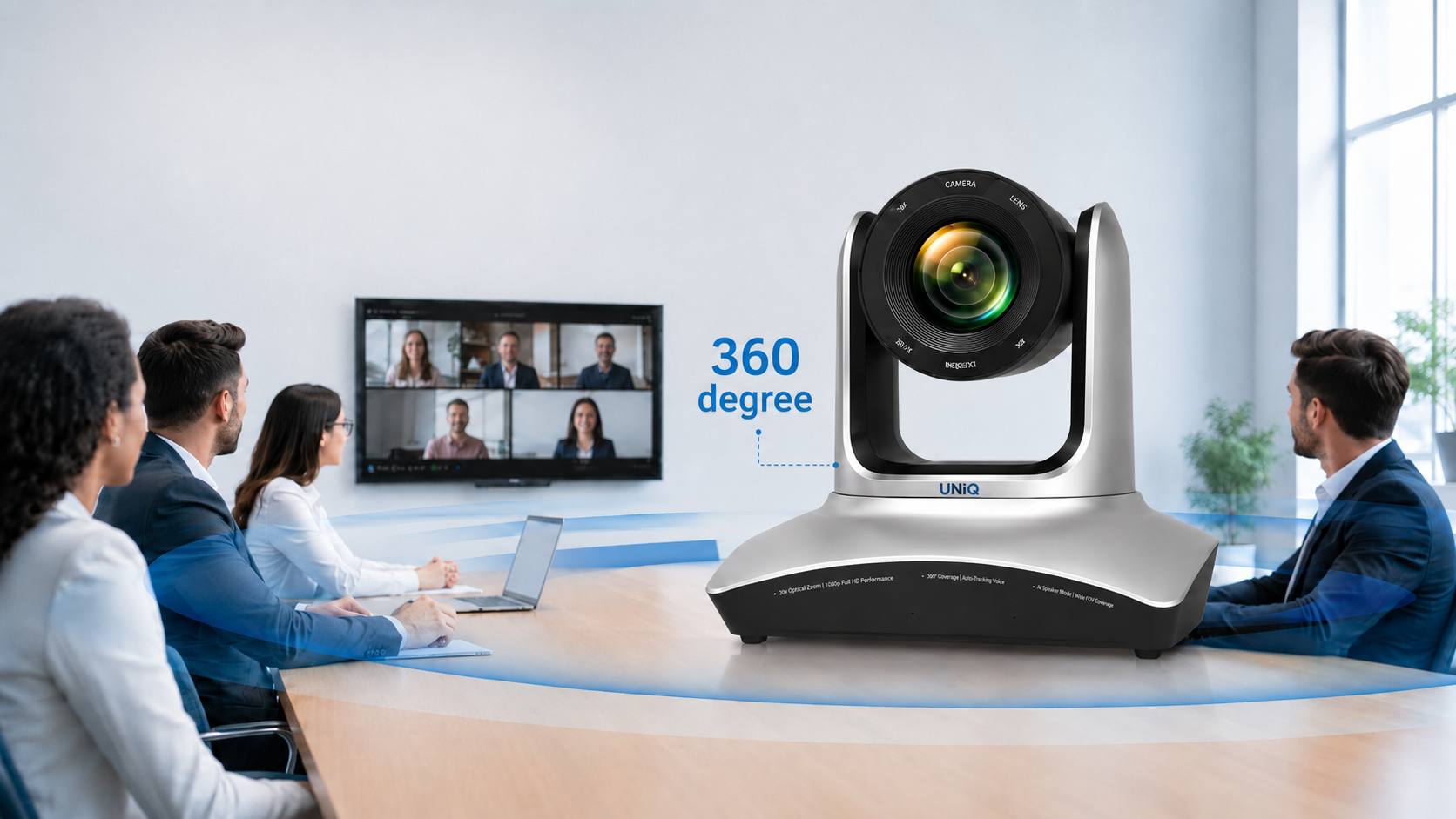

360° View
- Provides complete room coverage for immersive meetings.
- Capture every participant clearly without missing a detail.

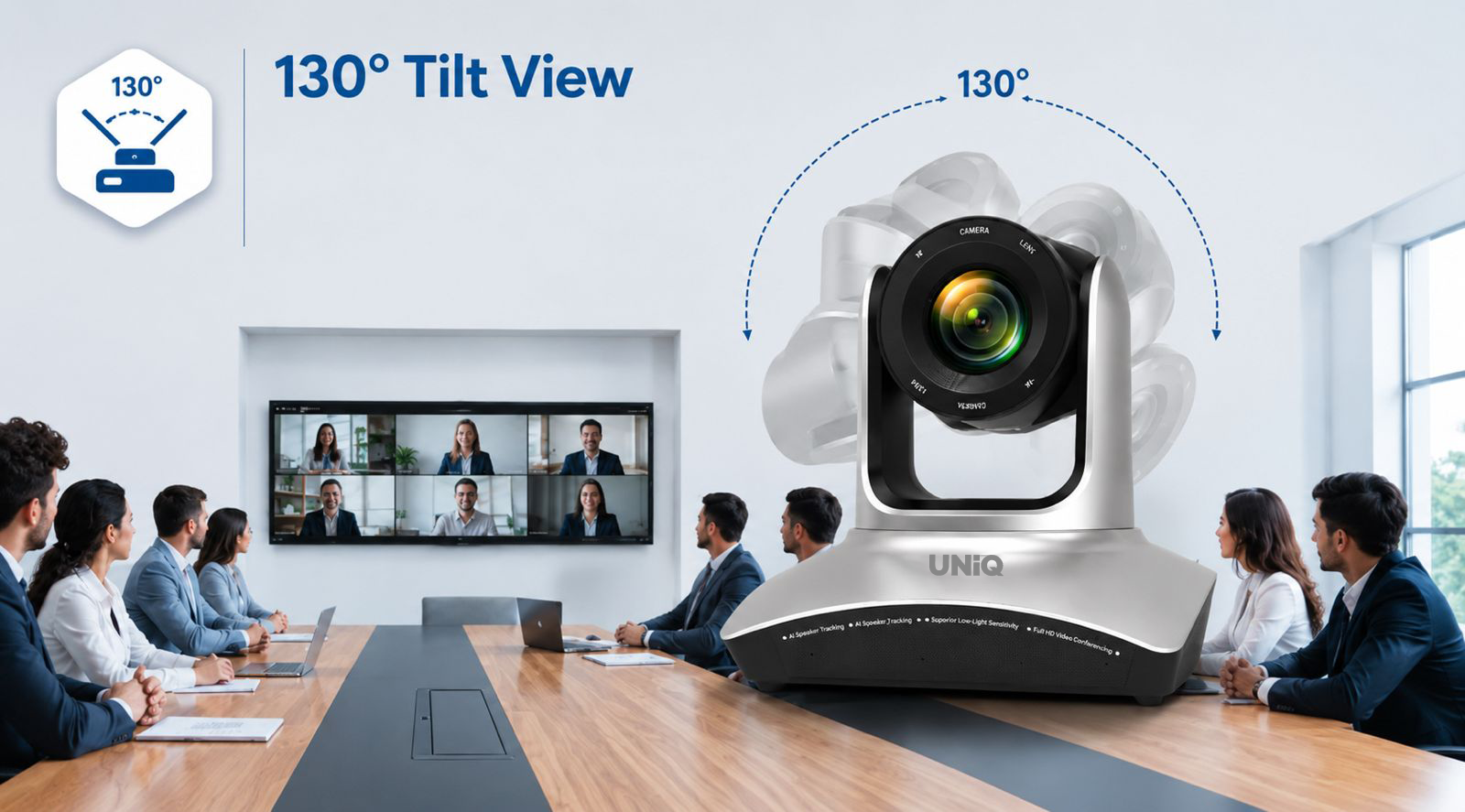

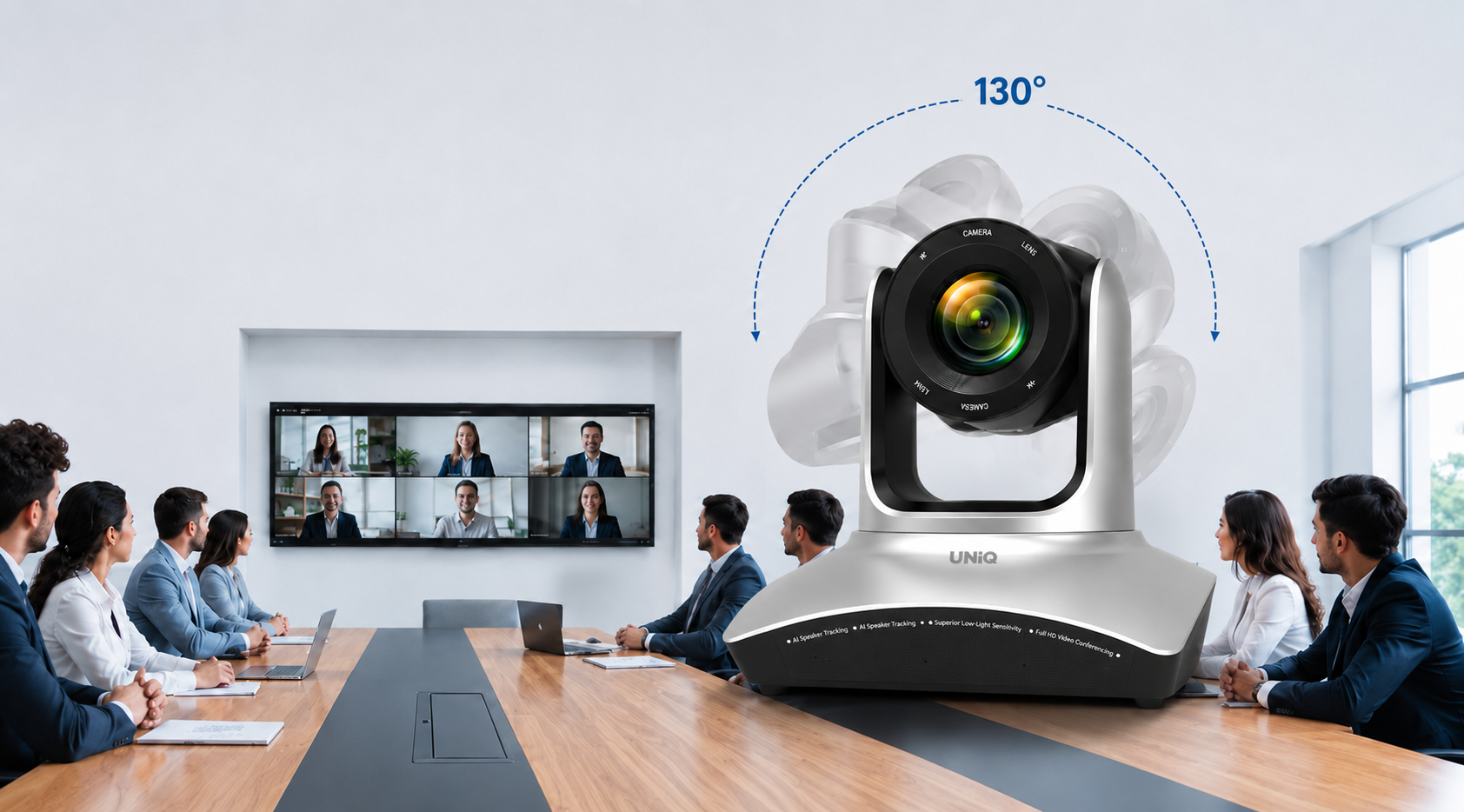

130° Tilt View
- Wide tilt range ensures better room visibility and flexibility.
- Easily cover larger conference spaces with precision.
4K Resolution
- Delivers ultra-clear video quality for professional communication.
- Experience sharp visuals and enhanced meeting clarity.
20X Optical Lens
- Powerful optical zoom captures distant participants in sharp detail.
- Perfect for large conference rooms and boardroom discussions.
Specifications
Model : ProCAM-Ai20SIP
| Image Sensor | |
|---|---|
| Sensor Type | 1/2.8 inch CMOS Sony sensor |
| Resolution FPS |
|
| Effective Pixels | 8.5 MP |
| Close-up Lens | 20X Optical Zoom |
| Viewing Angle | 58.7°(W)~3.2°(T) |
| Digital Zoom | 16x |
| Minimum Illumination | 0.1 Lux |
| DNR | Auto/Indoor/Outdoor/Manual White balance |
| Focus & Exposure | |
| Focus Mode | Auto/Manual |
| Exposure Mode | Auto/Manual |
| Shutter Speed | 1/25～1/10000s |
| Image & Video Quality | |
| Video Adjustment | Full color/black and white/image flip |
| SNR | 65.5dB |
| Ports & Connectivity | |
| HDMI | Yes |
| LAN | Yes |
| USB 3.0 | Yes |
| Back Panel | DC IN, HDMI, LAN(Support POE), USB 3.0 type B, RS-232/422, LINE IN |
| Video Output | HDMI, LAN, USB3.0 |
| Video Compression Format | MJPG, H.264 |
| Audio Input | LINE IN |
| LAN Port | 10M/100M adaptive Ethernet port, POE Support |
| Netork Protocol | |
| RTMP | Yes |
| RTSP | Yes |
| ONVIF | Yes |
| VISCA over IP | Yes |
| VISCA | Yes |
| SRT | Yes |
| TCP/IP | Yes |
| DHCP | Yes |
| Controls | |
| IR Remote | Yes |
| RS232 | Yes |
| RS485 | Yes |
| Sony Visca | Yes |
| Pelco P/D | Yes |
| Environmental | |
| Storage Temperature | -10°C ~ +70°C |
| Storage Humidity | 10%~90% |
| Working Temperature | -10°C ~ +60°C |
| Working Humidity | 10%~90% |
| Dimensions | 180mm x 180mm x 175mm |
| Weight (Approx.) | 1.9 Kg |
| Environment | Indoor |
| Accessories | |
| Standard Accessories | Power adapter, USB 3.0 Type B to Type A cable, user manual, HDMI Cable, Remote control |
| Optional Accessories | Mount bracket |
| Pan & Tilt | |
| Pan | 360° Rotation |
| Tilt | 130° Vertical Tilt |
| Pan Speed | 0.1°/s ~ 60°/s |
| Tilt Speed | 0.1°/s ~ 60°/s |
| Preset | 9 preset positions (remote control), 200 preset positions (PC/remote) |
| Audio Technonogy | |
| Built in mic | Yes |
| Pick up range | 10m |
| Ai Function | |
| Multi Gesture control | Yes |
| Voice Tracking | Yes |
| Auto Framing | Yes |
| Facial Recognition | Yes |
| Zone Tracking | Yes |
| Presenter Tracking Mode | Yes |
FAQ For ProCAM-Ai20SIP
Quick answers for ProCAM-Ai20SIP
ProCAM-Ai20SIP
1. What is the ProCAM-Ai20SIP?
The ProCAM-Ai20SIP is a professional 4K Ai 20X Optical Zoom PTZ Camera designed for large conference rooms, corporate boardrooms, and hybrid work/learning environments.
2. Does it support automatic tracking?
Yes, it features advanced Ai Auto Framing and Voice Tracking, which automatically adjusts and centers the camera on active speakers and participants.
3. What control protocols are supported?
The camera supports VISCA over IP, SONY VISCA, PELCO P/D, and ONVIF protocols, with control interfaces via RS-232, RS-485, and network IP.
4. What video outputs can be used simultaneously?
It supports simultaneous high-speed outputs via HDMI, USB 3.0, and IP network streaming (RTMP/RTSP/SRT).
5. Is the camera suitable for ceiling mounting?
Yes, it comes with a flexible ceiling mount installation option and supports image flip settings for clean setup.
