Product features

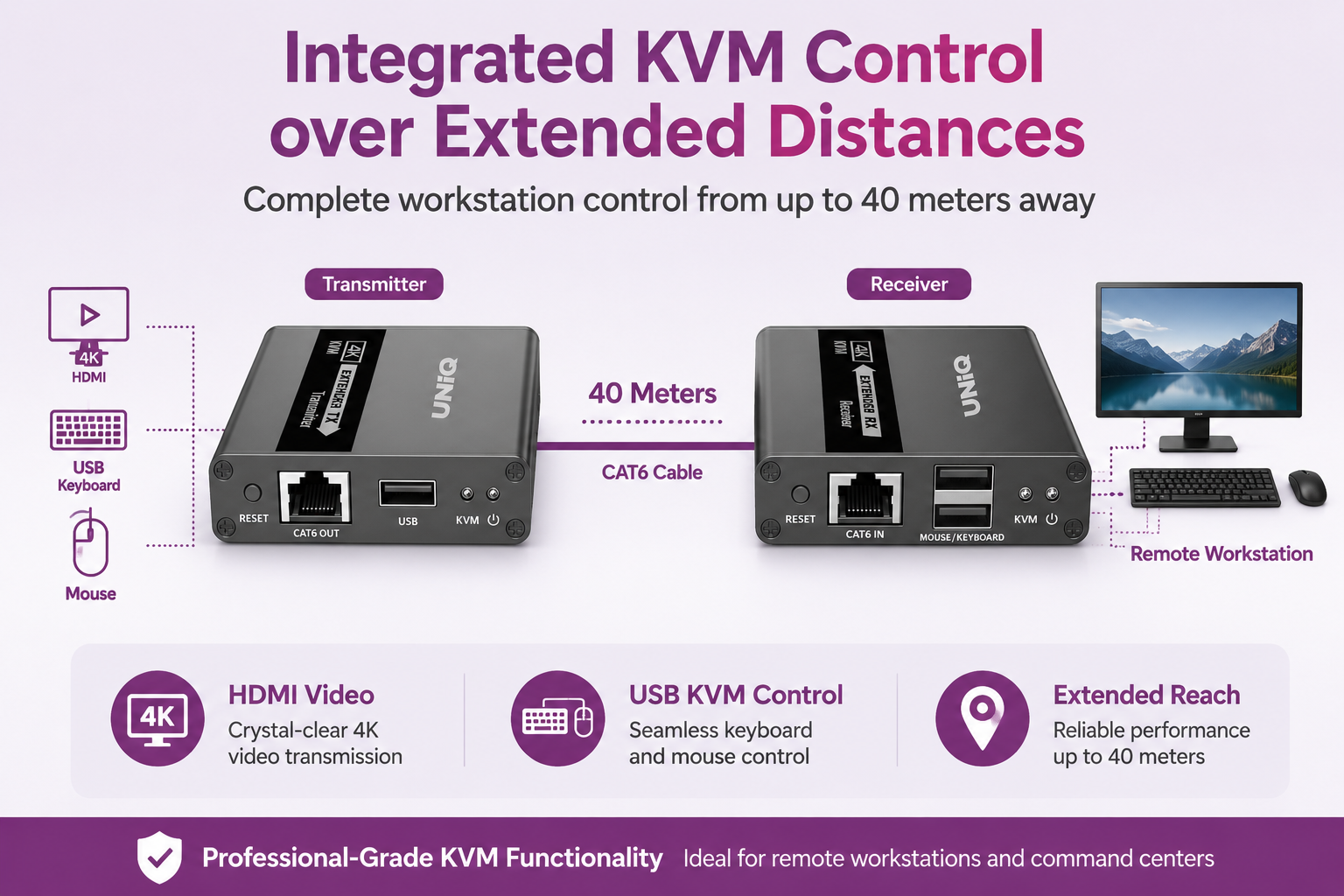

Integrated KVM Control over Extended Distances
- Combines HDMI video, USB keyboard, and mouse control in single transmission over 40 meters.
- Seamless keyboard-mouse responsiveness ideal for remote workstation operation and command centers.
- Professional-grade KVM functionality enables complete computer station control from distant locations.

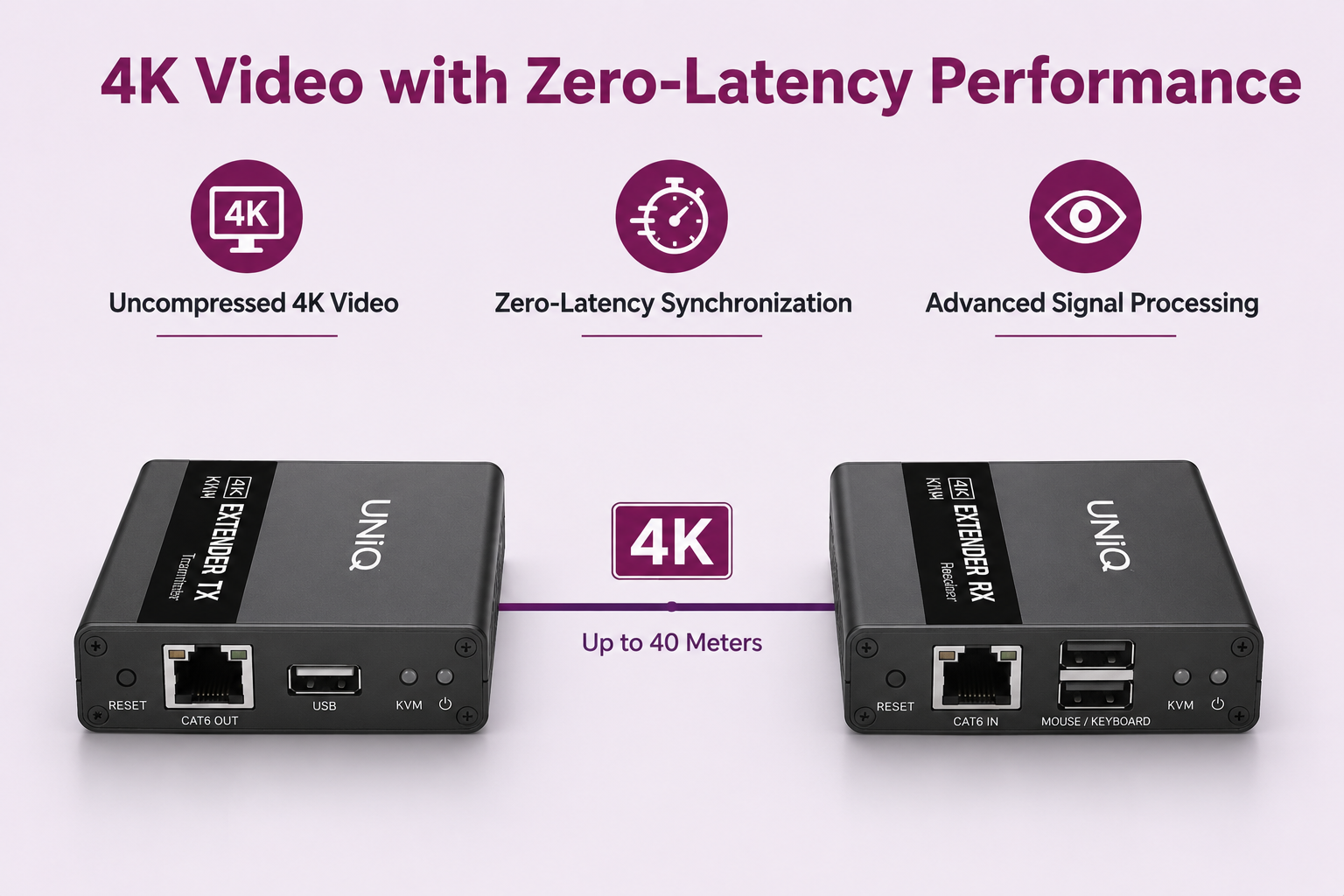

4K Video with Zero-Latency Performance
- Uncompressed 4K video transmission eliminates visual artifacts and maintains professional image quality.
- Zero-latency synchronization ensures responsiveness matching local operation exactly.
- Advanced signal processing preserves color accuracy and detail for critical visual work.

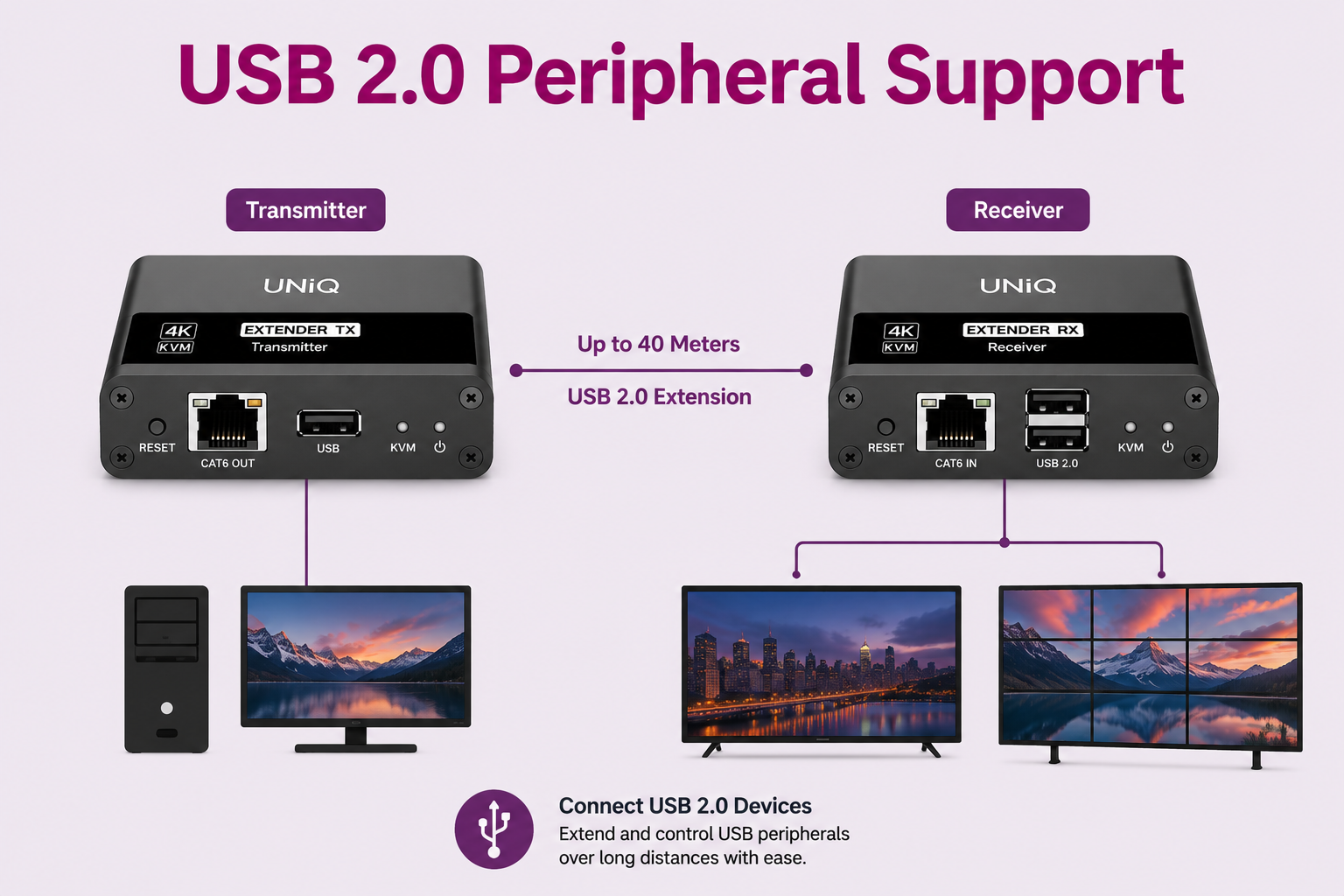

USB 2.0 Peripheral Support
- Full USB 2.0 compatibility for keyboard, mouse, and additional peripheral device extension.
- Multi-device support enables complex workstation setups with printers, scanners, and other peripherals.
- Reliable USB signal transmission over extended distances maintains device compatibility.
Specifications
Model : CE-L40 KVM
| Voltage/Current | DC5V/1A |
|---|---|
| Power consumption | TX<2.5W RX<2.5W |
| HDMI compliance | HDMI 1.4 |
| HDCP compliance | HDCP 1.4 |
| HDMI resolution | 800x600、1024x768、1280x720、 1280x960、1366x768、1440x900、 1680x1050、1920x1080、480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、 1080p@24/25/30/50/60Hz、 3840x2160@24/25/30Hz |
| Supports audio formats | PCM, LPCM, DTS HD, DTS Audio |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| Input cable length | ≤8m(AWG24) |
| Output cable length | ≤8m(AWG24) |
| Cat6/6A/7 | 1080p@60Hz≤70m 4K@30Hz≤40m |
| Electrostatic protection of the whole machine | Implementation of the standard: IEC61000-4-2 1a Contact discharge level 2 (4KV) 1b Air discharge level3(8KV) |
| Working temperature | -20~60℃ |
| Storage temperature | -30~70℃ |
| Humidity (no condensation) | 0～90%RH |
| Dimension | 75.0(L)x85.0(W)x20.0(H)mm |
| Material | Aluminum alloy material+crystal panel |
| Treatment process | Grit blast |
| Color | Black |
| Weight | TX:180g RX:180g |
| Package Contents | 1) Transmitter x1 2) Receiver x1 3) Power Adaptor DC5V/1A x2 4) USB Cable x1 5) User Manual x1 |
SCHEMATICS
FAQ For CE-T70
Quick answers for CE-T70
CE-L40 KVM
1. 1. There is no output on screen when all connections are correct?
5. 2. Black screen happened on the display/monitor?
8. 3. The display shows unusual color or no sound?

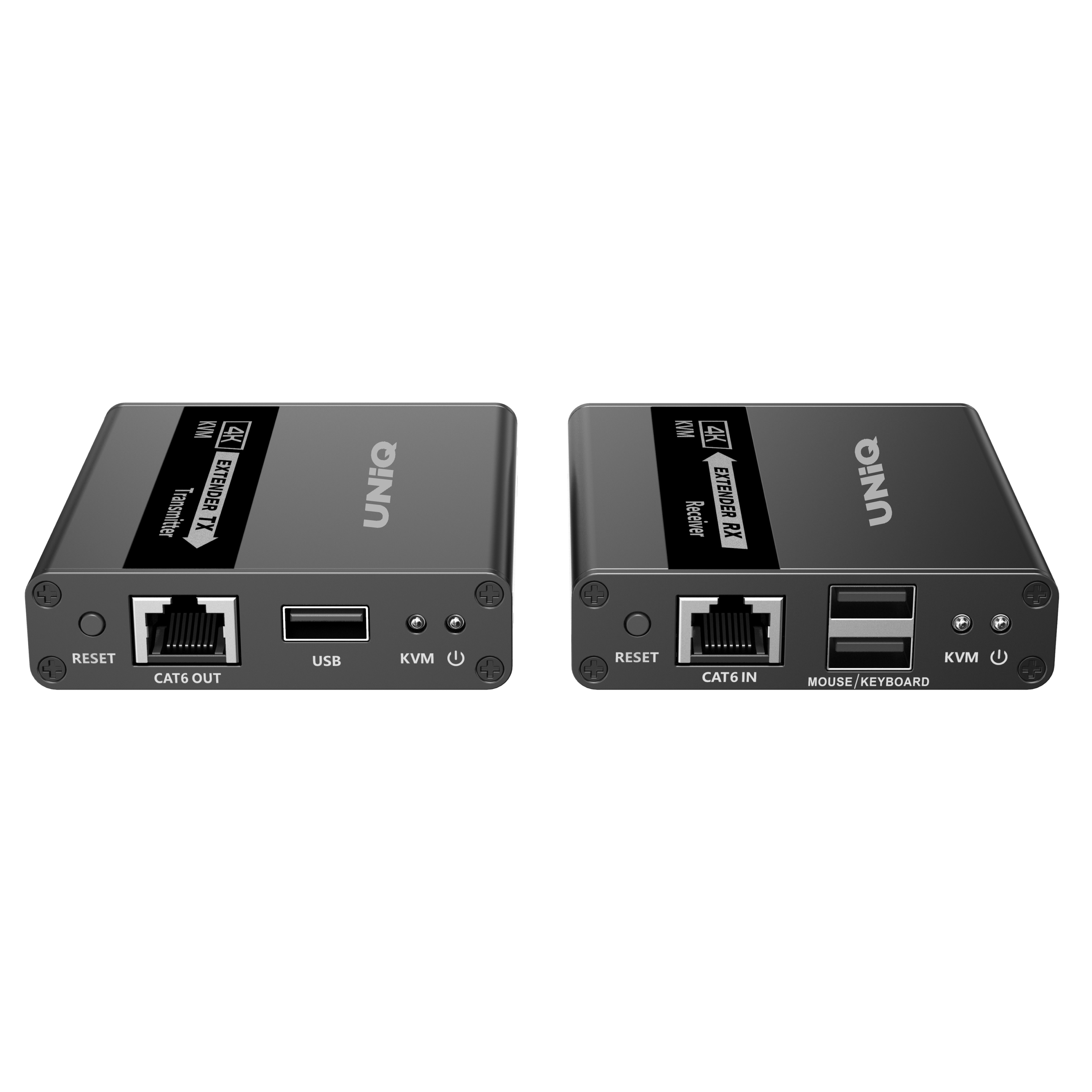

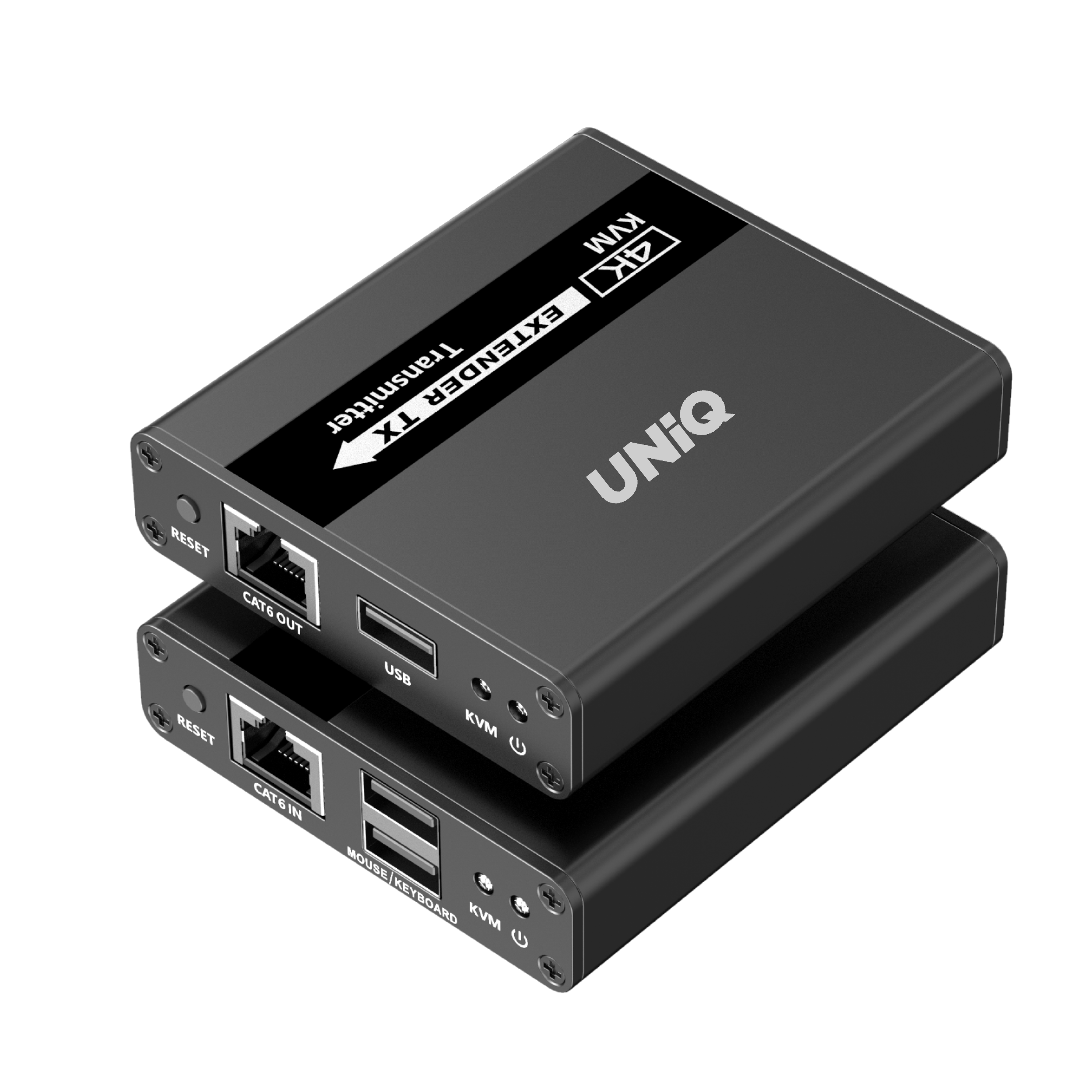

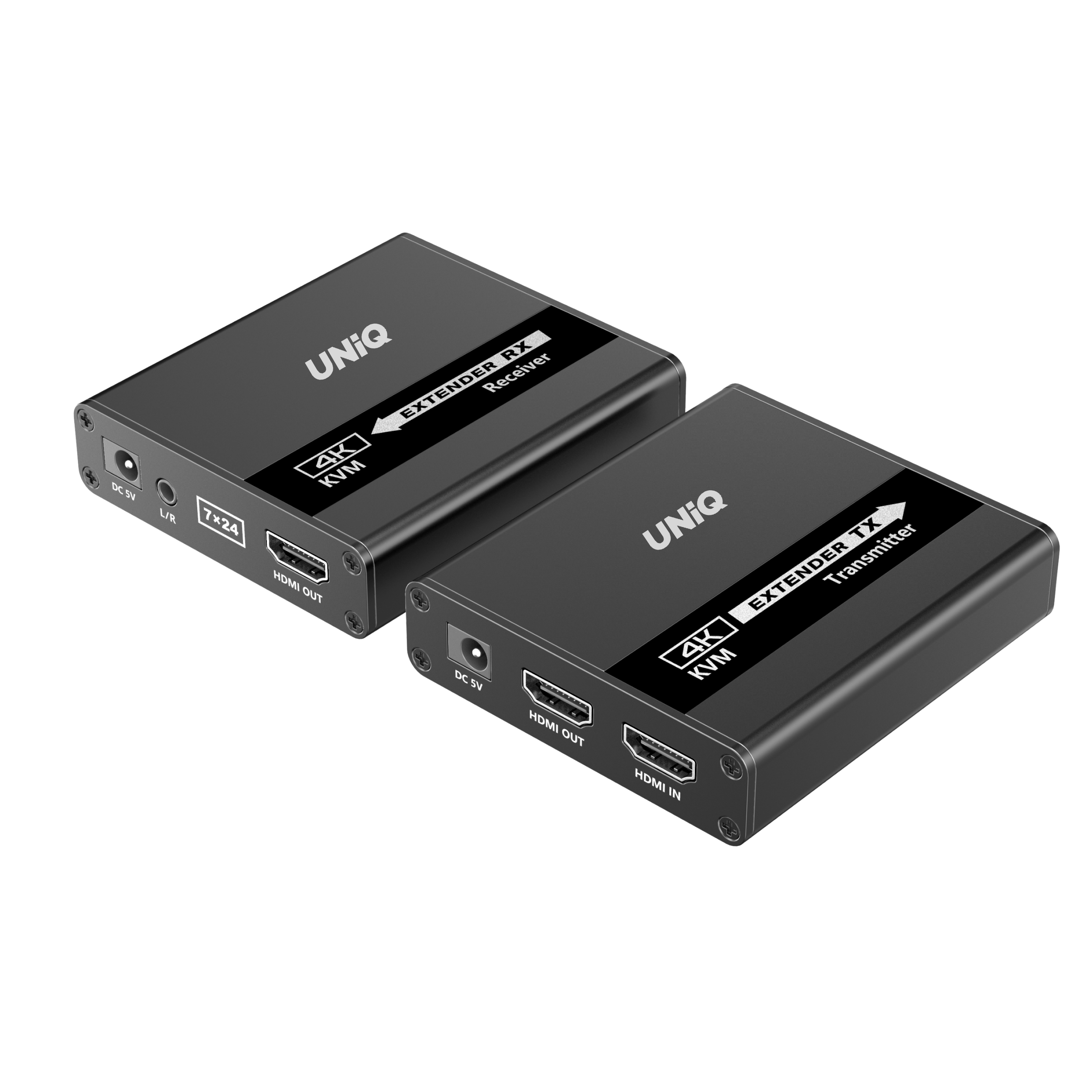

Product Gallery
