Product features
4K @ 70m
Experience ultra-high-definition clarity with 4K resolution transmitted over distances up to 70 meters, delivering four times the detail of standard 1080p for a truly immersive visual experience.
Audio De-embedded
Extract and output audio signals independently from the HDMI stream, allowing flexible audio routing and integration with external audio systems.
EDID Support
Smart EDID management ensures reliable signal handshakes between sources and displays, automatically optimizing resolution and audio settings.
IR Passthrough
Bi-directional IR pass-through allows you to control your source devices from the remote display location using the original remote control.
Specifications
Model : CE-SP8T70
| Transport Protocol | IPColor Technology |
|---|---|
| Distribution Mode | 1 Input × 8 Output |
| Transmission Distance | CAT6/6A/7 – Up to 70m |
| HDMI Signal | HDMI 2.0, HDCP 2.2 |
| Audio Formats |
4K: LPCM / DTS / Dolby Digital 5.1 1080P: LPCM / DTS / Dolby Digital 5.1 / Dolby Digital Plus 7.1 |
| IR Passback | Bi-directional IR Passback (20–60 kHz) |
| RS-232 | 3 Pin: TxD-RxD-GND, Follows RS-232 Levels |
| Working Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 0% ~ 90% RH (Non-condensing) |
| Resolution Support |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280×960, 1280×800, 1280×1024, 1600×900, 1600×1200, 1920×1200, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25/30Hz |
| Power Supply | TX: DC12V / 2A |
| Power Consumption | TX + RX < 11W |
| ESD Protection |
IEC61000-4-2 Contact Discharge Level 2 Air Discharge Level 3 |
| Lightning Protection | Supported |
| Surge Protection | Supported |
| Material | Iron |
| Color | Black |
| Weight | TX: 778g, RX: 145g |
| Dimension |
TX: 265 × 120 × 23 mm RX: 85 × 75.5 × 16.5 mm |
| Package Contents |
HDMI Splitter Extender TX ×1 HDMI Splitter Extender RX ×8 Power Adapter DC12V/3A ×1 IR Blaster Extension Cable ×1 IR Receiver Extension Cable ×8 RS-232 Terminal Block ×1 Mounting Brackets (TX) ×2 Mounting Brackets (RX) ×16 Screws ×40 Grounding Screws ×10 User Manual ×1 |

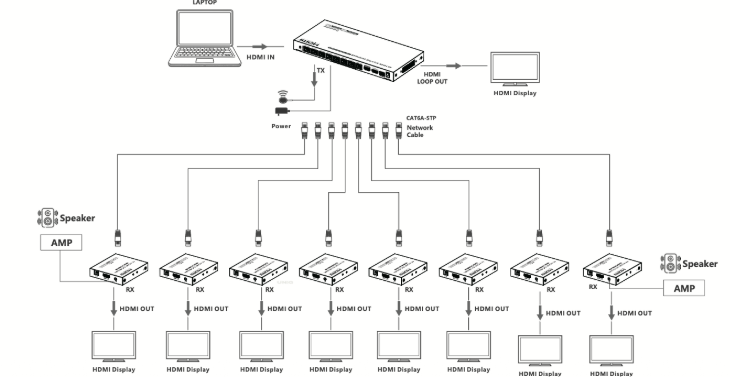

Schematic Diagram
FAQ For CE-SP8T70
Quick answers for CE-SP8T70
CE-SP8T70 FAQ
1. Why there is no image output on the display device?
2. Why is the output image unstable?
3. Why does the TV have a snowy/fuzzy screen?
