Product features
4K 60@Hz, 70m range
Experience ultra-high-definition clarity with 4K resolution, delivering four times the detail of standard 1080p for a truly immersive visual experience.
Vivid stream technology
Vivid stream technology enhances color depth and sharpens details to provide a more striking and professional visual experience.
IR Pass Through
Bi-directional IR pass-through allows you to control your source devices from the remote display location using the original remote control.
POC Support
Power over Cable (PoC) technology allows the system to be powered from a single end, reducing cable clutter and the need for multiple power outlets.
Specifications

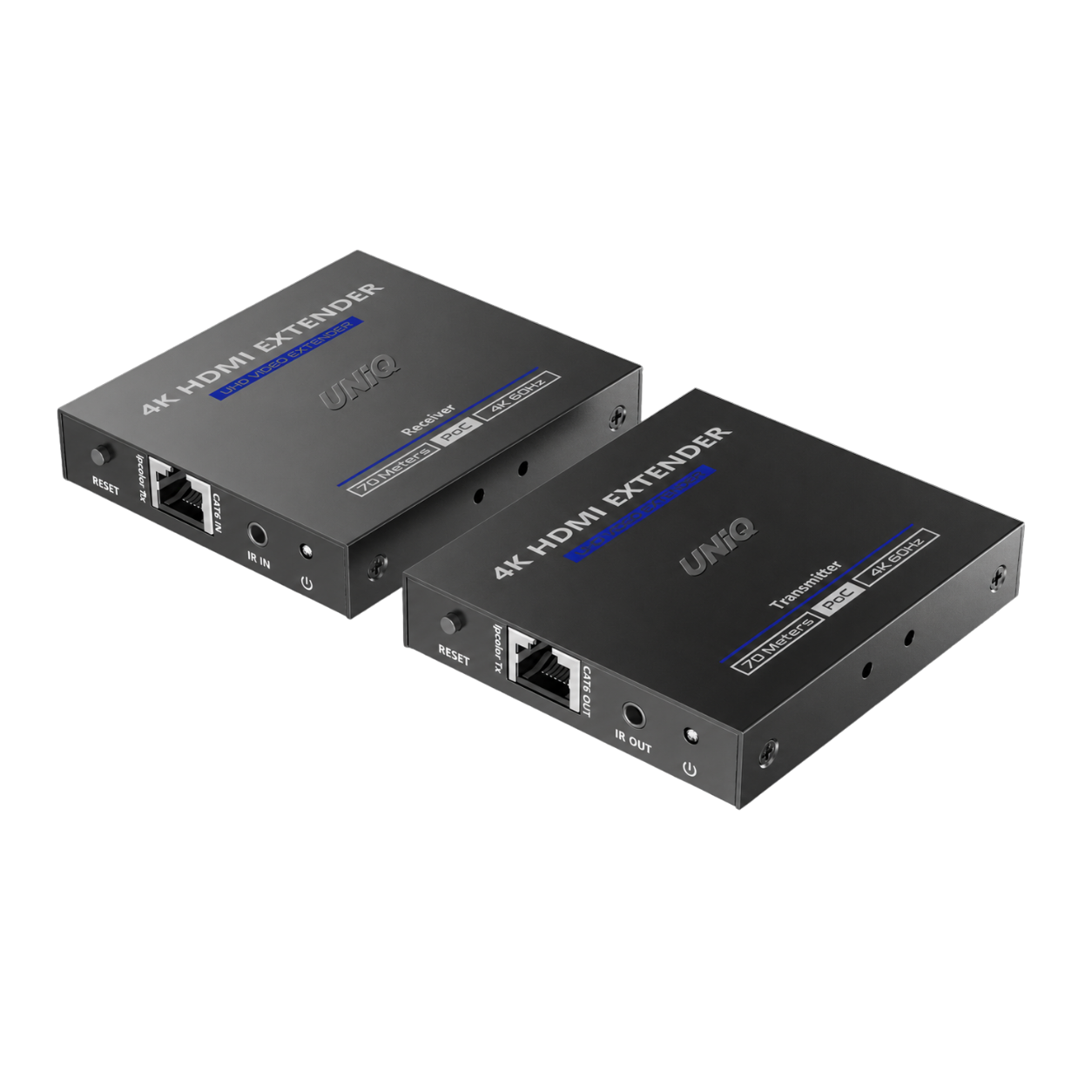

Model : CE-T70
| Power Supply | DC5V/2A | |
|---|---|---|
| Power Consumption | TX < 4W | RX < 4W |
| Video Input Interface | 1 × HDMI Type-A Female | 1 × RJ45 Female |
| Video Output Interface | 1 × RJ45 Female | 1 × HDMI Type-A Female |
| HDMI Cable Length | ≤ 5m | ≤ 5m |
| Transfer Rate | 18Gbps | |
| Bandwidth | 600MHz | |
| EDID Pass-through | Supported | |
| Compatibility |
HDMI 2.0 (Deep Color, 4K, HDR, YUV4:4:4) HDCP 2.2 |
|
| Resolution Support |
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600 |
|
| Transmission Distance | CAT6/6A/7 ≤ 70m | |
| Audio Input | 1 × HDMI Type-A Female | - |
| Audio Output | - |
1 × HDMI Type-A Female 1 × 3.5mm L/R Female |
| Audio Formats | LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos | |
| IR Interface | 1 × 3.5mm IR OUT Female | 1 × 3.5mm IR IN Female |
| Receiving Range | ≤ 5m | |
| Infrared Frequency | 20KHz ~ 60KHz | |
| Working Temperature | -20°C ~ 60°C | |
| Storage Temperature | -30°C ~ 70°C | |
| Humidity | 0~90% RH (No Condensation) | |
| Protection |
ESD Protection Contact Discharge Level 2 (±4KV) Air Discharge Level 3 (±8KV) IEC61000-4-2 Standard Lightning Protection Surge Protection |
|
| Package Contents |
1 × Transmitter 1 × Receiver 1 × Power Adapter DC5V/2A 1 × IR Blaster Extension Cable 1 × IR Receiver Extension Cable 4 × Mounting Ears 10 × Screws 1 × User Manual |
|
Schematic Diagram
FAQ For CE-T70
Quick answers for CE-T70
CE-T70 FAQ
1. The devices are connected correctly, but why is there no image displayed?
2. Why does the display occasionally have a black screen?
3. Why is the display color abnormal or no sound?
